Electromagnetic Circuits
From
Krause, John D., "Electromagnetics", McGraw-Hill, 1953



Krause introduces the analogy between Electric and Magnetic “circuits”.  It is a useful technique for calculating magnetic flux flow in magnetic loops.



Chapter   5-18: The Magnetic Circuit, Reluctance and Permeance

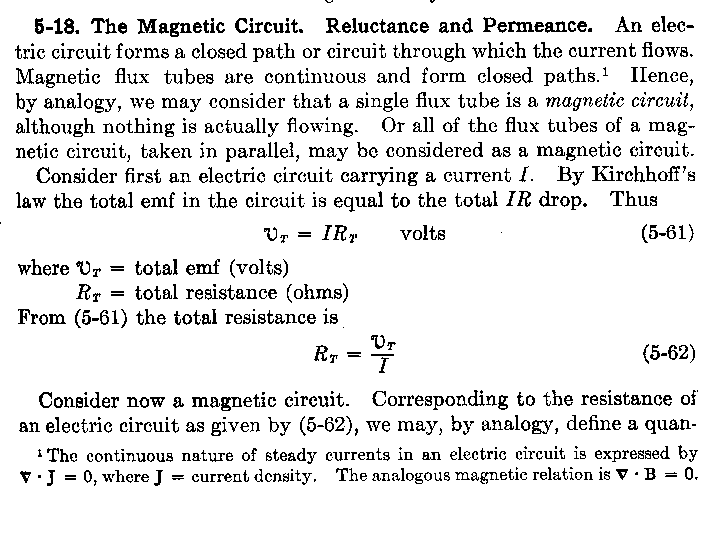

P245    Basic Concepts

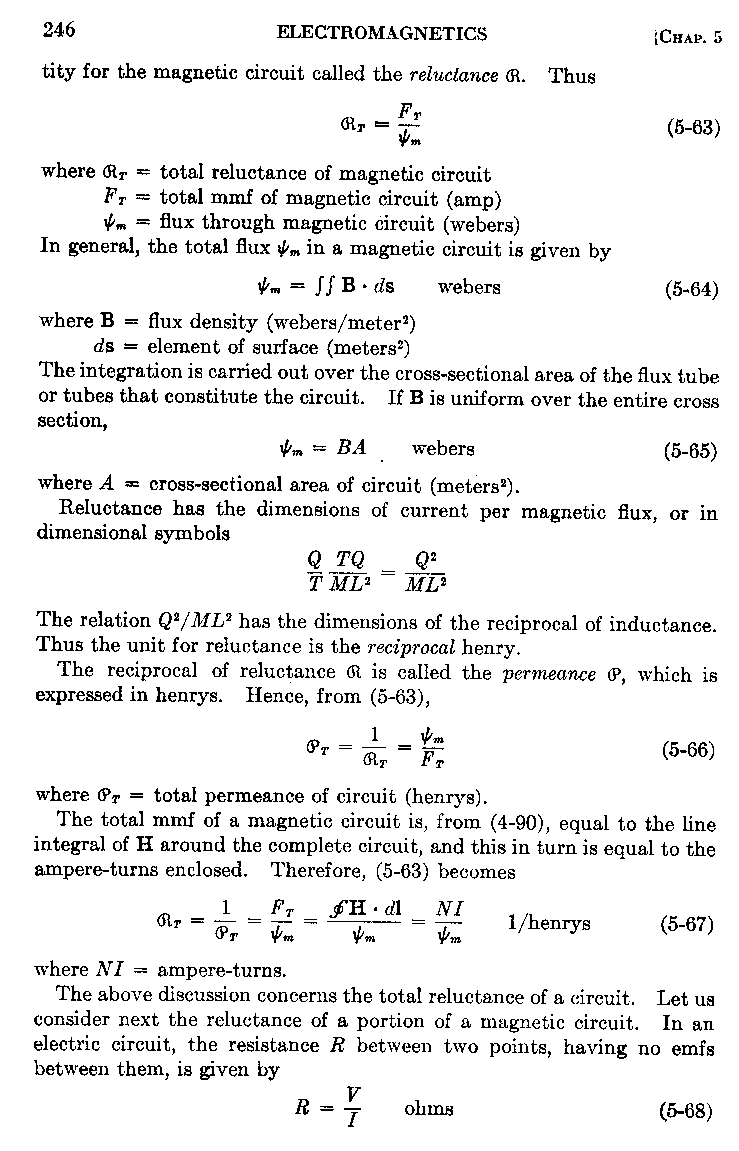

P246    Basic Concepts – continued

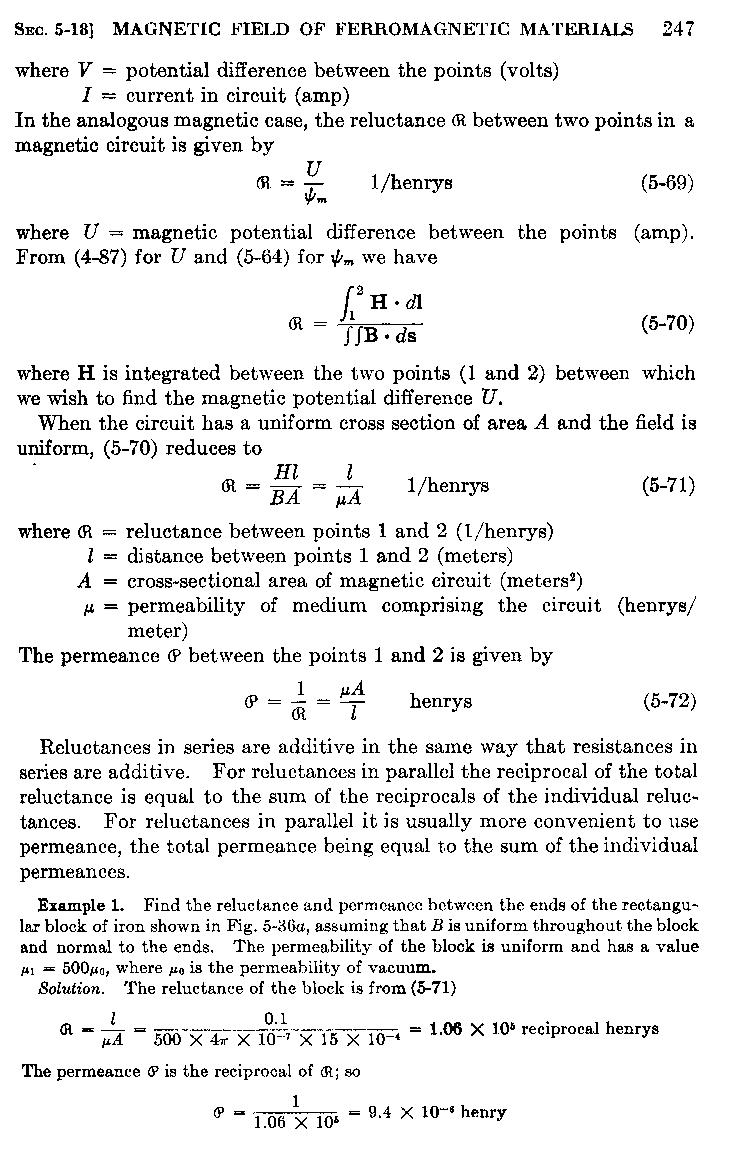

P247    Basic Concepts – continued

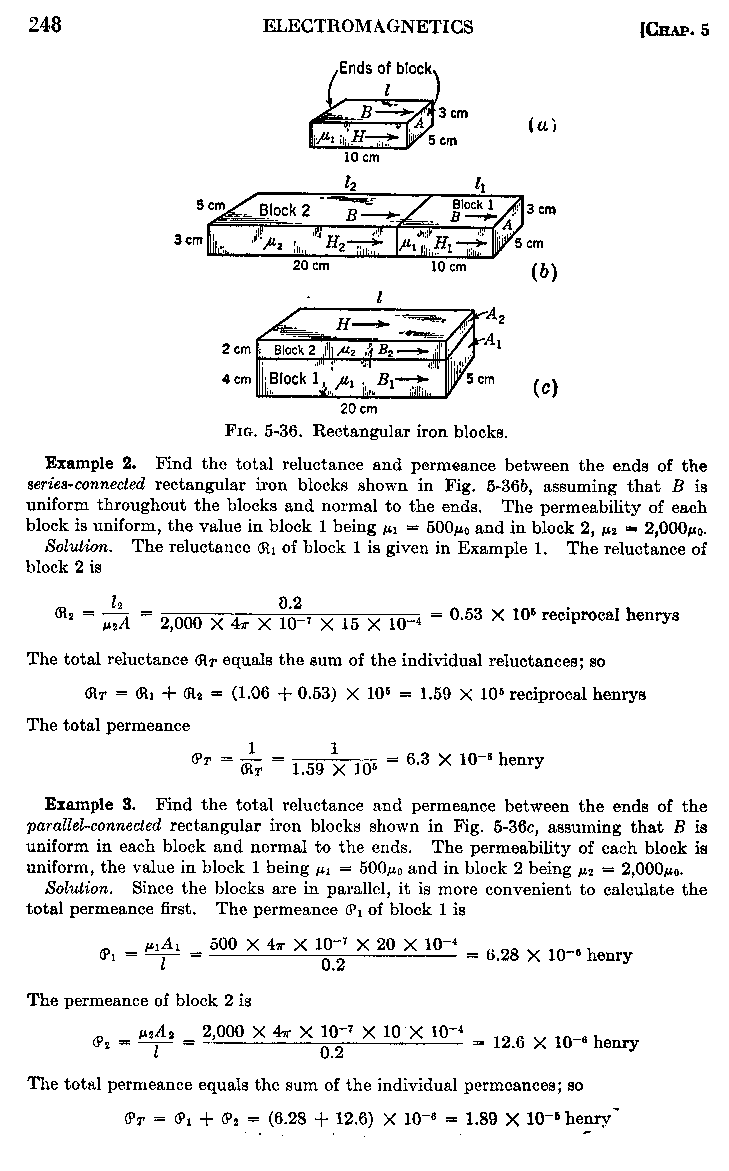

P248    Basic Concepts – continued

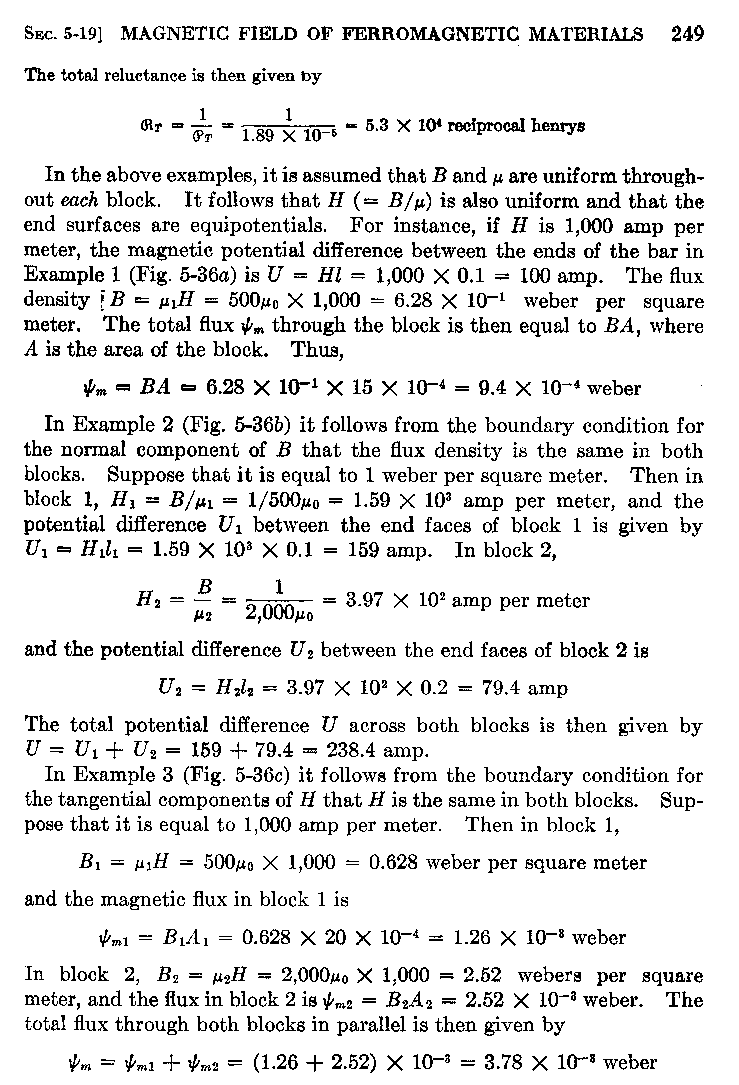

P249    Basic Concepts – continued



Chapter 5-22 through 5-26: Applications

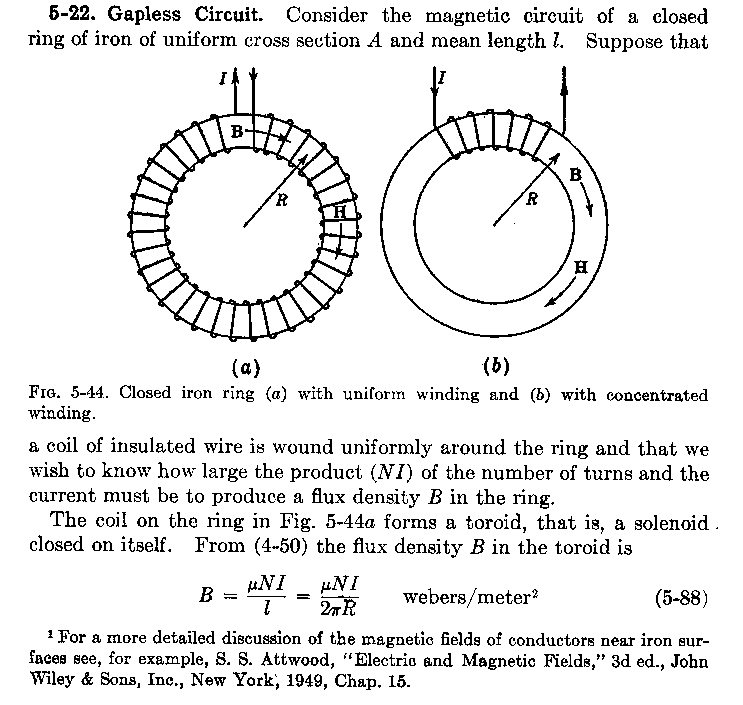

P261    Gapless Circuit

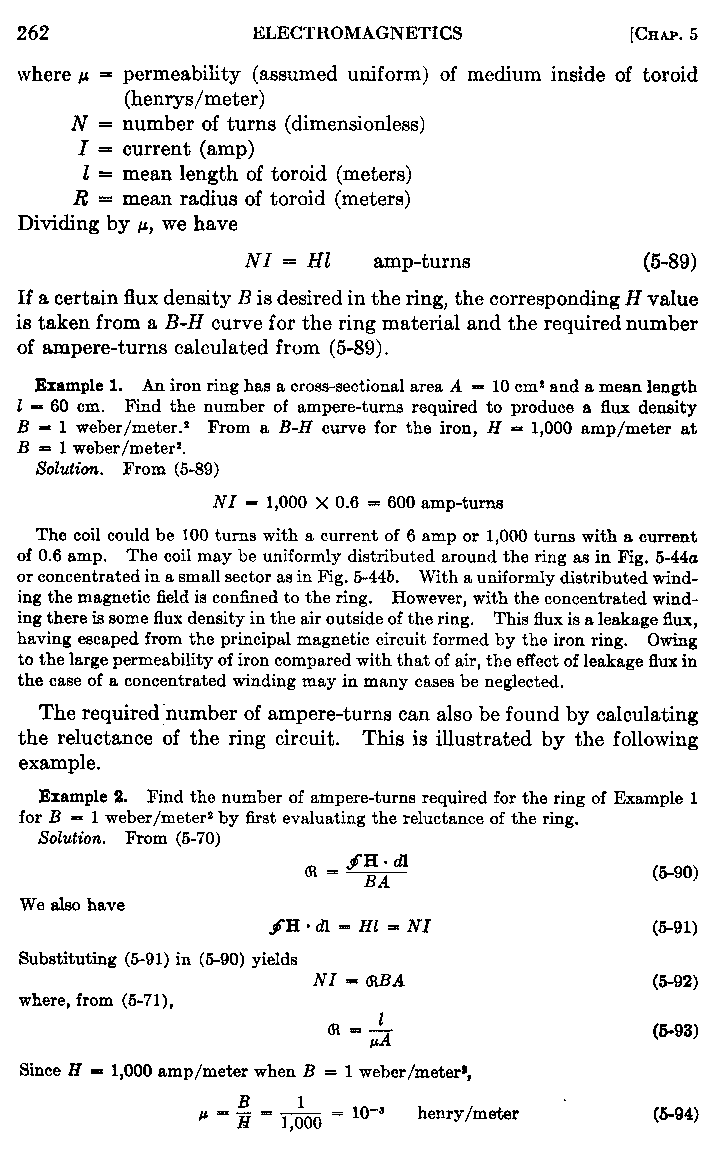

P262    Gapless Circuit – continued

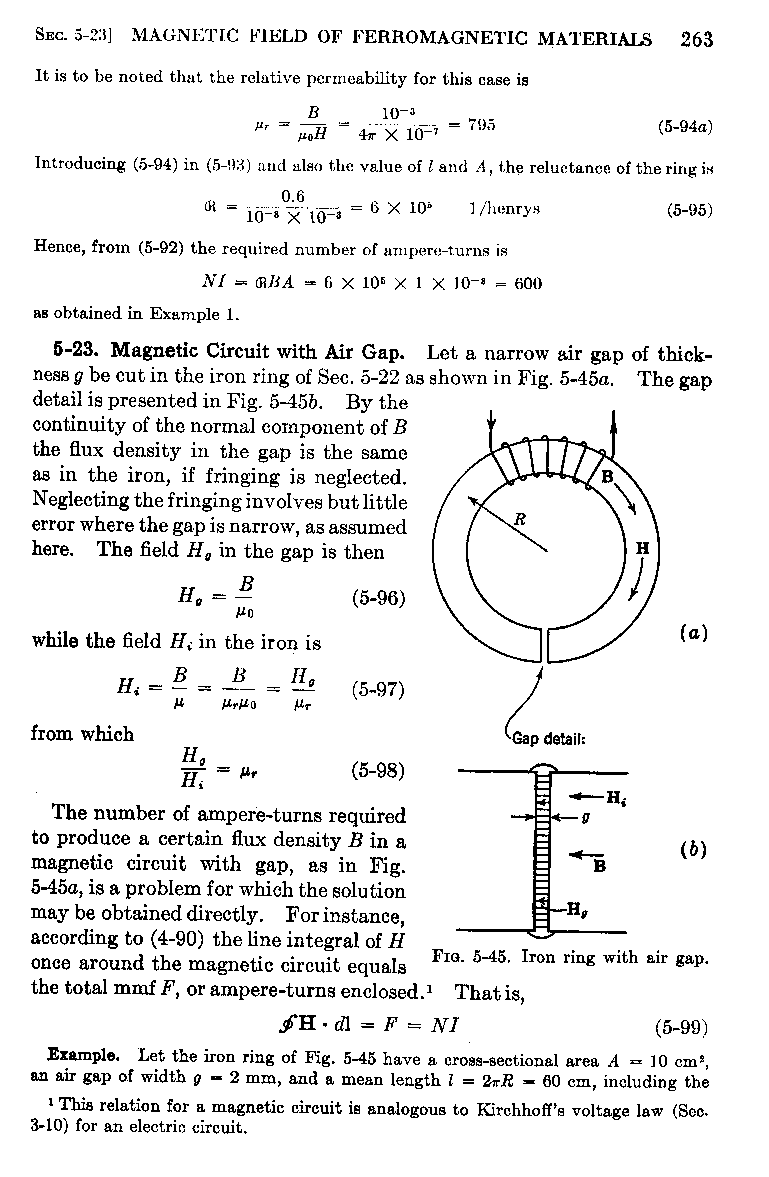

P263    Gapless Circuit – end; Start Magnetic Circuit with Gap

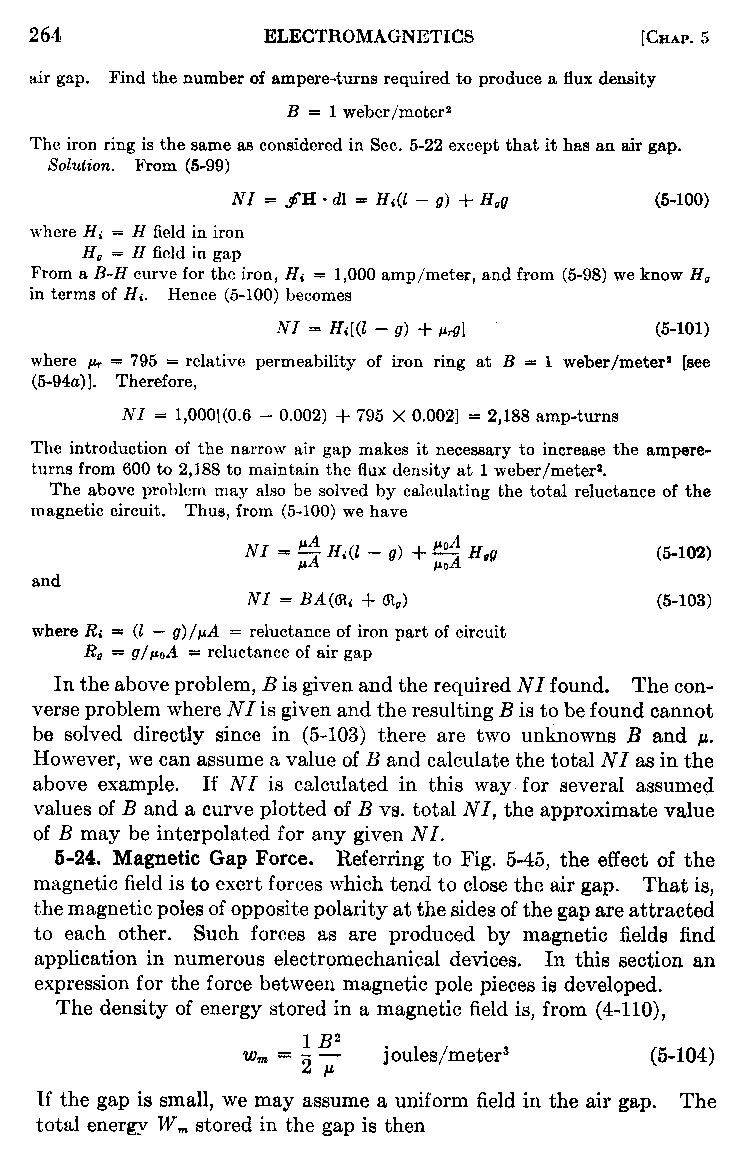

P264    Magnetic Circuit with Gap – end; Start Magnetic Gap Force

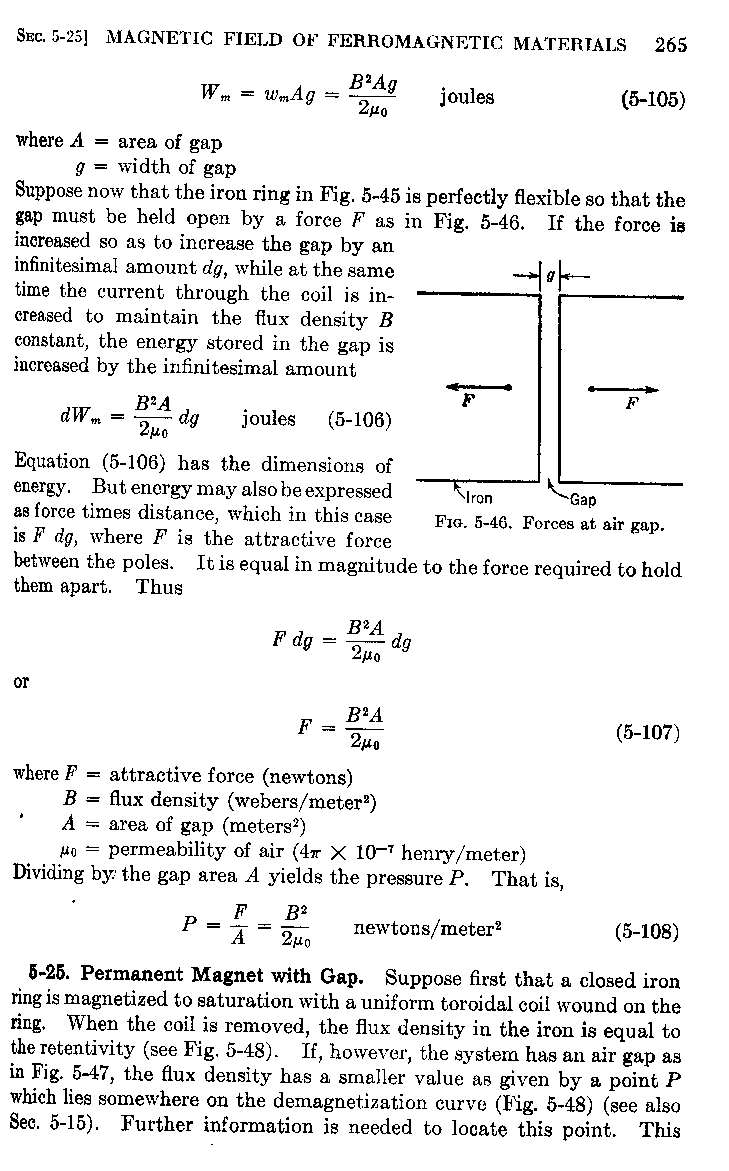

P265    Magnetic Gap Force – end; Start Permanent Magnetic with Gap

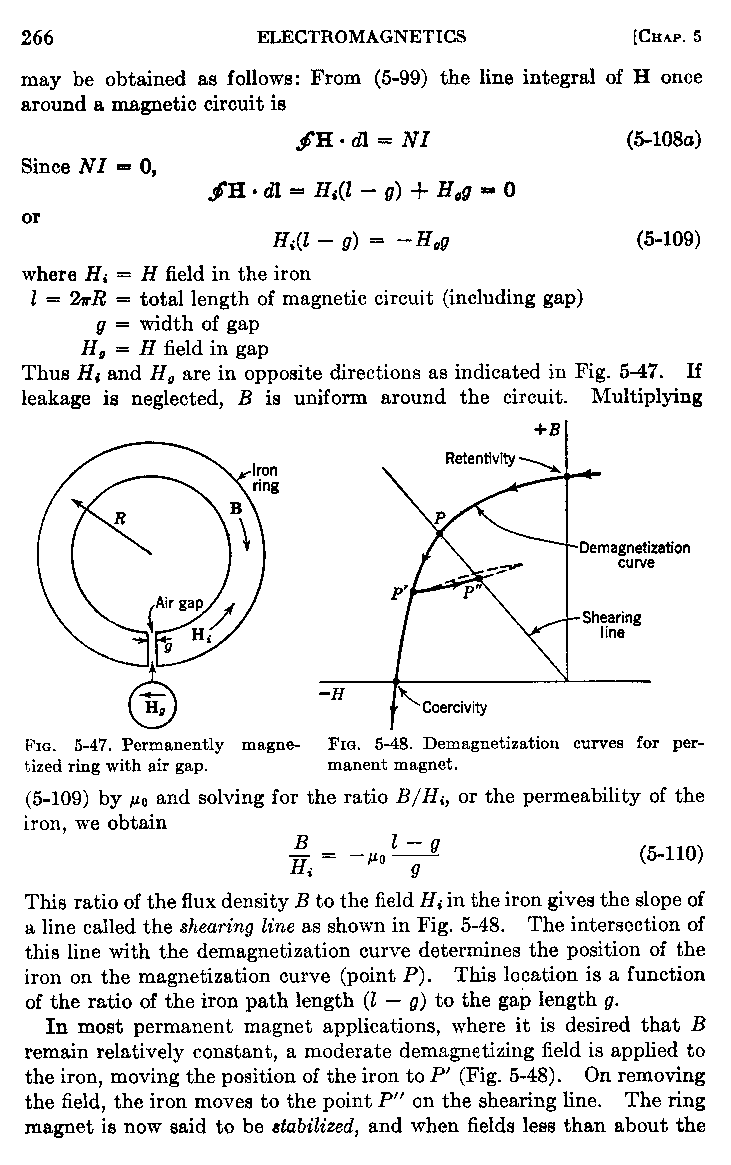

P266    Permanent Magnetic with Gap – continued

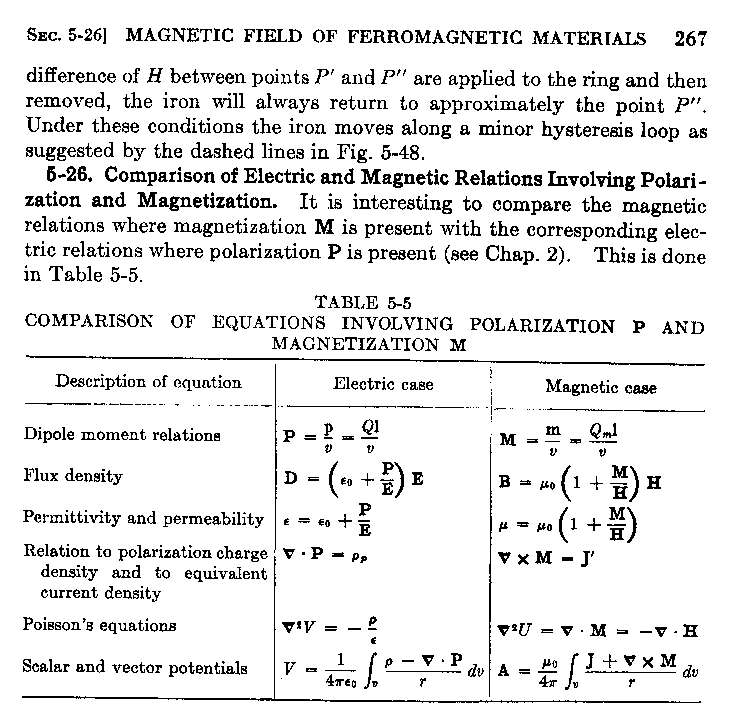

P267    Permanent Magnetic with Gap – end; Comparison of Electric and Magnetic Relations Involving Polarization and Magnetization
